Automatic15-20 kg wooden pellets bag forming filling packaging machine
प्रस्तावना:
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
तांत्रिक बाबी
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
संकुचित हवेची आवश्यकता: 0.6Mpa 0.65m³/min
Reel outer diameter: 450mm
कोर आतील व्यास: 75 मिमी
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
मुख्य वैशिष्ट्ये आणि वैशिष्ट्ये:
- पाउचची विस्तृत श्रेणी: पिलो आणि गसेट पाउच.
- उच्च गती: 20-50 बॅग/मिनिट
- ऑपरेट करणे सोपे: पीएलसी कंट्रोलर आणि रंगीत टच-स्क्रीन, टच स्क्रीनवर फॉल्ट संकेत.
- समायोजित करणे सोपे: भिन्न पाउच बदलण्यासाठी फक्त 10 मिनिटे.
- वारंवारता नियंत्रण: श्रेणीमध्ये वारंवारता रूपांतरणाद्वारे गती समायोजित केली जाऊ शकते.
- उच्च स्वचालन: वजन नसलेल्या आणि पॅकिंग प्रक्रियेत न वापरलेले, अपयशी असताना स्वयंचलितपणे मशीन अलार्म.
- सुरक्षा आणि स्वच्छता:
- कोणतीही फिल्म, मशीन अलार्म करणार नाही.
- मशीन अलार्म आणि अपुरे वायु दाब तेव्हा थांबवा.
- सुरक्षितता-रक्षक, मशीन अलार्मसह सुरक्षा रक्षक आणि सुरक्षा रक्षक उघडल्यावर थांबतात.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

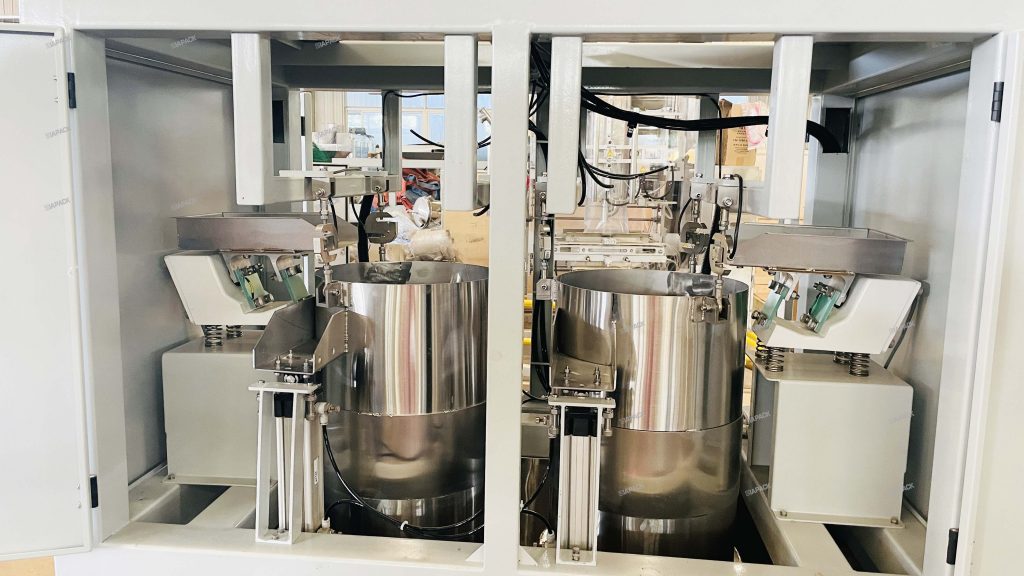

- ZLC2-15k double bucket weighing machine
प्रस्तावना:
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
वैशिष्ट्ये:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
